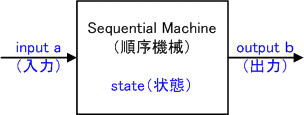

順序機械とは
それまでの入力で、出力が決まる
a(t-k),...,a(t-2),a(t-1) → b(t)
k = ∞ の時:無限順序機械
k ≠ ∞ の時:有限順序機械
M = (Q,煤CΔ,δ,λ,q
0
)
Q:状態の有限集合
Σ:入力記号の有限集合
Δ:出力記号の有限集合
δ:状態遷移関数
∃
p∈Q,
∃
a∈Σ,
∃
q∈Q ⇒ δ(p,a) = q
λ:出力関数
∃
p∈Q,
∃
a∈Σ,
∃
b∈Δ ⇒ λ(p,a) = b ←
Mealy Machine(ミーリー型)
∃
p∈Q,
∃
b∈Δ ⇒ λ(p) = b ←
Moore Machine(ムーア型)
q
0
:初期状態
ミーリー型
出力が入力と状態に依存する。
現在の状態 p に、入力 a が入ると、次の状態 q になって、出力が b となる
状態遷移図(state transition diagram)
入力:
入力列:
出力列:
状態遷移表
現在
の
状態
次の状態
出力
入力
入力
0
1
0
1
⇒p
p
q
0
0
q
p
q
0
1
δ:Q×Σ→Q,λ:Q×Σ→Δ
Q = { p, q },Σ = { 0, 1 },Δ = { 0, 1 }
ムーア型
出力が現状態のみの関数になっている。
現在の状態 p に、入力 a が入ると、次の状態 q になる
状態遷移図(state transition diagram)
入力:
入力列:
出力列:
状態遷移表
現在
の
状態
次の状態
出力
入力
0
1
⇒r
r
s
0
s
r
t
0
t
r
t
1
δ:Q×Σ→Q,λ:Q→Δ
Q = { r, s, t },Σ = { 0, 1 },Δ = { 0, 1 }
状態遷移図(state transition diagram)の例(ミーリー型)
電灯のスイッチ
ON(点灯)とOFF(消灯)の二つのボタンを持つ電灯
ボタン:
自動販売機
100円玉と50円玉のみを受け付け、150円のペットボトル入りのお茶、単品を販売する自動販売機
コイン:
取出口:
